Dot matrix printer 1140 roll holder

Industrial high-performance printing with up to 1,000 characters / second

Rugged printer for large print volumes and up to 6 copies.

The Tally Dascom 2610+ combines performance and ergonomics in a very good price / performance ratio.

The Tally Dascom 2600+ combines performance and ergonomics in a very good price / performance ratio.

The Tally Dascom 1145 impresses with its compact dimensions and robustness.

Small but powerful - the entry into the DASCOM world.

The specialist for roll paper.

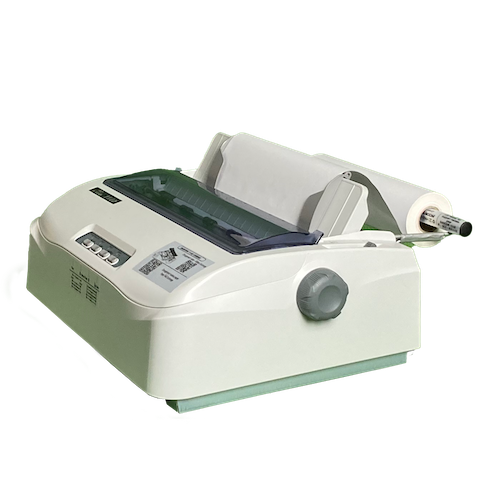

Based on the proven quality of the Tally Dascom 1140 the roll holder verison is specialy desinged for roll paper applications that can be found on airports, railways and travel agencies.

User friendly operation
Made of metal, it will easily withstand rough handling by users and can works with roll up to 2 kilogramm. When exchanging the paper roll the axle won't be lost as it is fixed to the mechanism.

For more information please click here.

Highlights at a glance

Compact 9-pin narrow carriage printer
Up to 400 characters per second
Ideal for airport applications
Solution designed for airport countersand back office applications

Models

1140 roll holder standard model

Print head	9 pins
Print speed	up to 400 char/sec.
Print volume	up to 6.000 pages/month
Resolution	up to 144 x 240 dpi
Interfaces	1x USB
Emulations	IBM, Epson
Print width	80 characters at 10 cpi
Paper type	Roll paper Roll diameter: max. 130 mm / 2 kg Core diameter: min. 20 mm
Copies	1 original and 4 copies

Model overview

1140 roll holder USB interface (Part-No. 910 003)
1140 roll holder USB/Parallel interface (Part-No. 910 004)
1140 roll holder USB/Serial interface (Part-No. 910 005)
1140 roll holder USB/Ethernet interface (Part-No. 910 006)

Consumables

Ribbon black (7 mio. char) (Part-No. 099 007)

Brochure dot matrix printer

Data sheet

Tally Dascom 1145

Contact

Dot Matrix Printer 1140 roll holder
