DASCOM
Card Printer DC-8600 - Re-Transfer
The DC-8600 is the next generation re-transfer printer from DASCOM. Available in two models the printer can hold up two different cards with a maximum capacity of 450 cards. With a print speed of up to 170 cards/hour and ribbons for 500 images the printer is not scared of large print jobs.
Both models have a USB and an Ethernet interface as standard. The administration can be done via a browser through the DASCOM WebPanel.
Both models have a USB and an Ethernet interface as standard. The administration can be done via a browser through the DASCOM WebPanel.
Highlights at a glance
- High resolution printing with 600 dpi
- High productivity due to high speed printing
- Over-the-Edge full card printing
- High capacity card feeder
- Variety of smart card encoders
Models

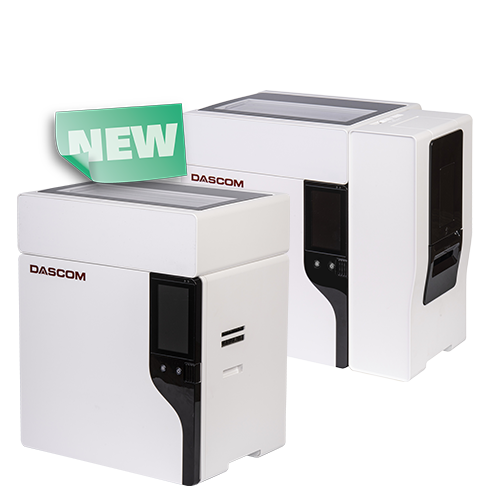

- DC-8600 standard model
- DC-8600 double bin model
Card Printer DC-8600
Resolution | 600 x 600 dpi |
Technology | Re-transfer |
Print speed | Single Side: 170 cards/hour Dual Side: 83 cards/hour |
Interfaces |
1x USB |
Card format | ISO ID-1/CR-80 |
Card thickness | 0,5 - 1,1 mm |
Models, options and consumables
Model overview
- DC-8600 standard (USB, Ser., Ethernet) (Part-No. 28.894.6517)
- DC-8600 double bin (USB, Ser., Ethernet) (Part-No: 28.894.6523)
Consumables
- Ribbon YMCK (500 Images) (Part.-No. 23406 003)
- Ribbon YMCKH (400 Images) (Part.-No. 23406 006)
- Ribbon YMCKK (400 Images) (Part.-No. 23406 029)
- Ribbon YMCKSI (350 Images) (Part.-No. 23406 076)
- Transfer Film (500 Images) (Part.-No. 23406 009)
- Cleaning Card Set (5 pcs.) (Part-No. 043 600)
Instruction videos
- DC-8600: Fill card box
- DC-8600: Exchange consumables
- DC-8600: Print test card
- DC-8600: Windows driver installation (USB & Ethernet)
- DC-8600: Using the cleaning card
- DC-8600: Maintaining the printer
