DASCOM

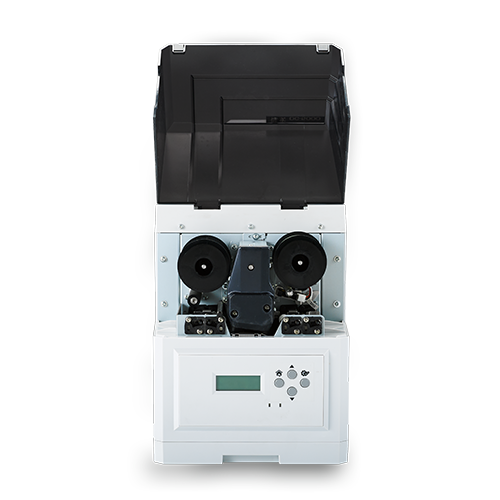

Laminator DC-5100
The DC-5100 can be used as a stand-alone unit to overlaminate printed cards and extend their durability up to 10 years.
In connection with the DASCOM DC-7600 retransfer printer, cards can be completely printed and laminated on one or both sides in one operation without user intervention.
In connection with the DASCOM DC-7600 retransfer printer, cards can be completely printed and laminated on one or both sides in one operation without user intervention.
Highlights at a glance
- In connection with DC-7600 single and double-sided lamination
- 2-line LCD display
- Suitable for laminates of 0.6 mil or 1.0 mil
- Processing speed up to 35 mm / sec.
Models
- DC-5100 standard model
Laminator DC-5100
Lamination method | Direct thermal |
Lamination modesTechnology | Single side; Dual side (only in combination with DC-7600) |
Lamination speed | 6 - 35 mm/sec. |
Interfaces | 1x USB 1x Ethernet |
Card format | ISO ID-1/CR-80 |
Card thickness | 0,48 - 1,1 mm 20 - 50 mil |
Models, options and consumables
Model overview
- DC-5100 (Part-No. 28.849.0112)
Option
- Mounting plate for DC-7600 and a laminator (Part-No. 28 026 004)
- Mounting plate for DC-7600 and two laminators (Part-No. 28 026 005)
Consumables

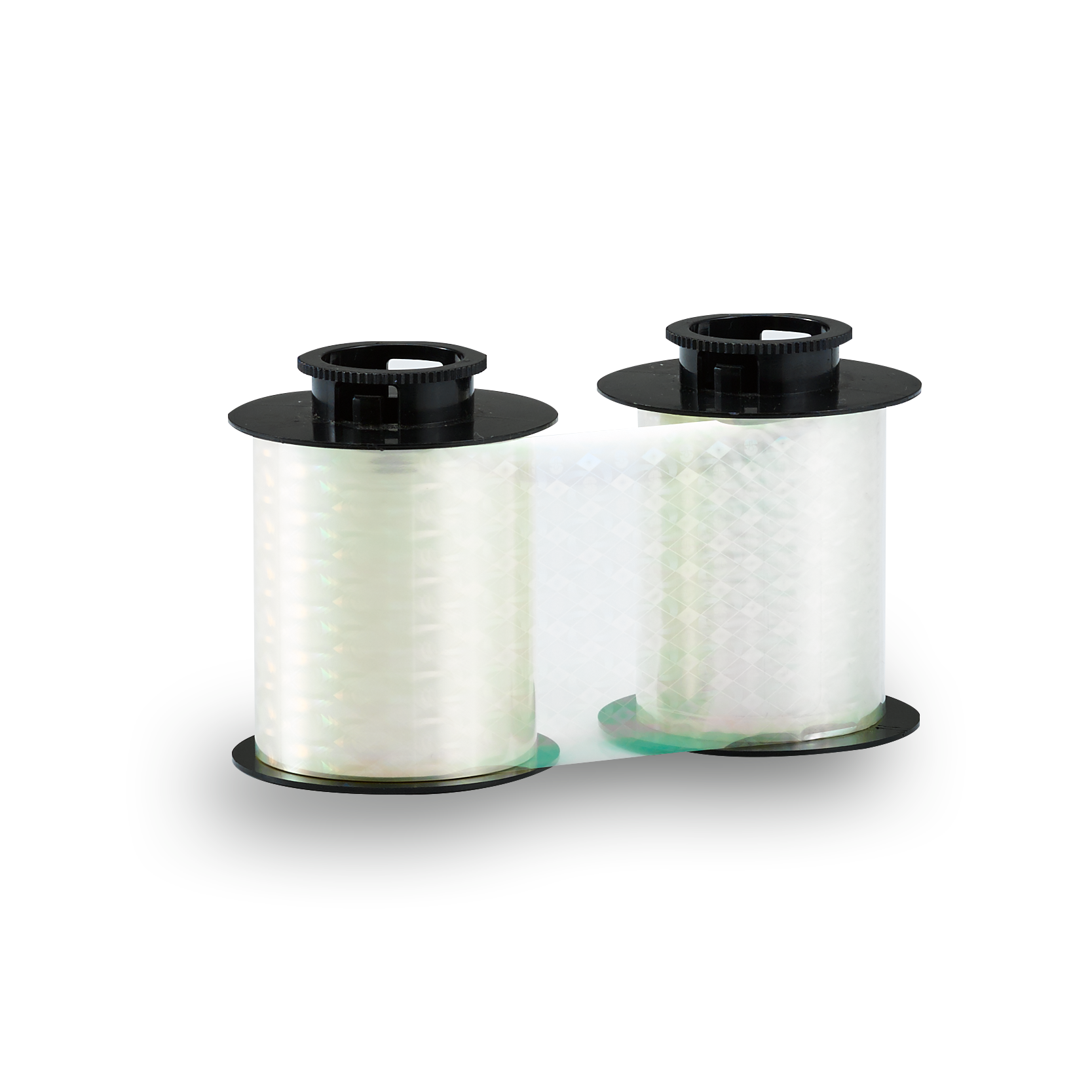

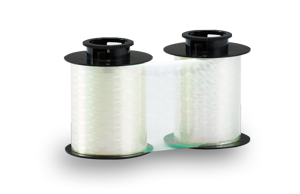

- Clear Patch (200 patches; 0.6 mil) (Part-No. 28 026 011)
