DASCOM

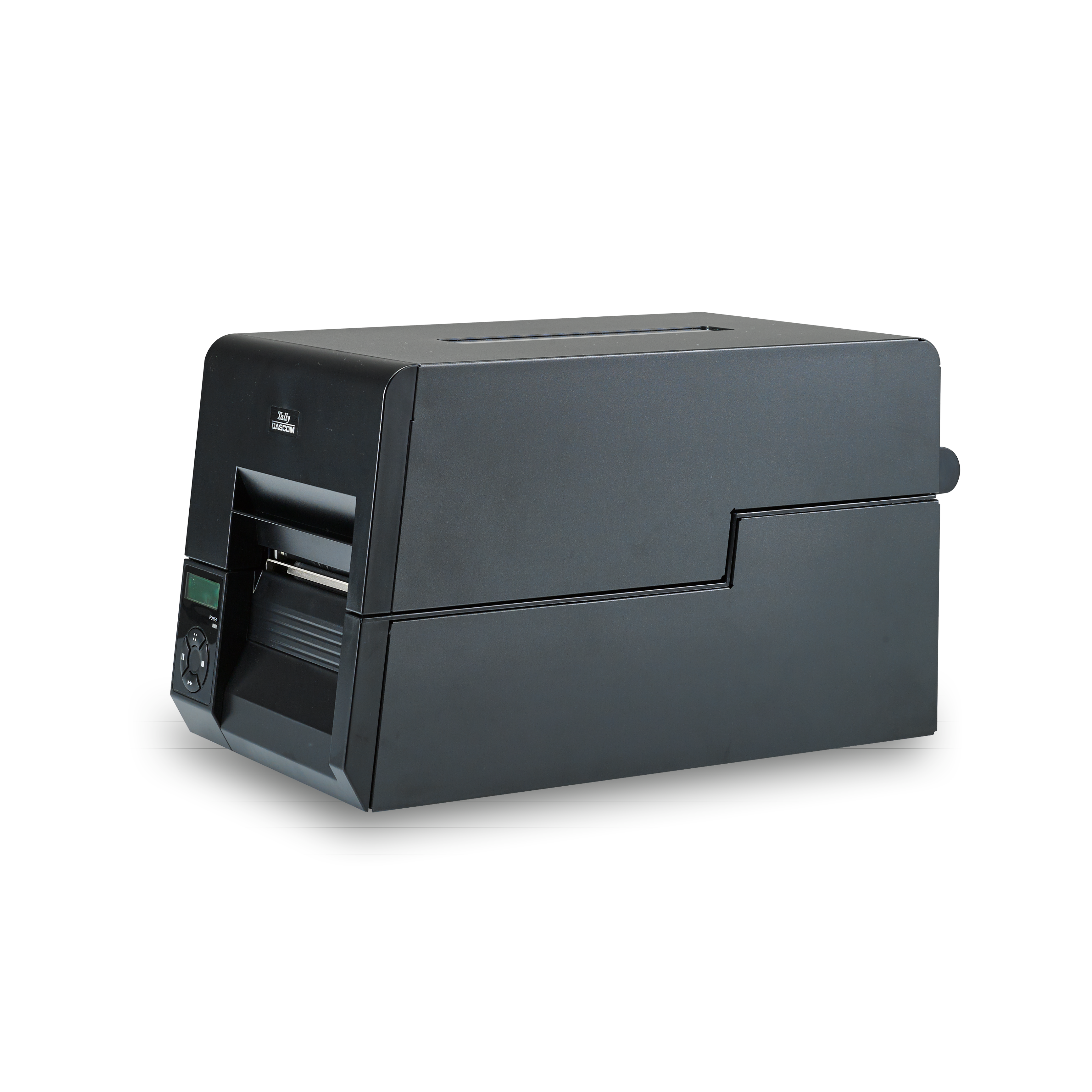

Thermal Printer DL-830
The user-friendly design of the printer facilitates a ribbon length of up to 360 metres and a roller core diameter of up to 203 mm (8 inches), meaning fewer user interventions are necessary.
In addition to the Ethernet interface, the DL-830 can also be configured with a large number of optional accessories. These make it ideal for use in many sectors, such as logistics and production or healthcare.
Highlights at a glance
- High Speed Printing
- Easy Paper Loading
- USB and Ethernet Interfaces as standard
- Supports ZPL and EPL emulation
- 360 m ribbon roll
- Support of 8 inch media roll
- LCD display for easy administration
Models
- DL-830 standard model
- DL-830 model with cutter
- DL-830 model with peeler
Thermal Printer DL-830
Print head | Direct-thermal or thermal-transfer |
Print speed | up to 127 mm/sec. |
Print volume | up to 500 m/day |
Resolution | 300 dpi |
Interfaces | 1x USB, 1x Ethernet |
Emulations | ZPL, EPL, TSPL |
Print width | 106 mm |
Models, options and consumables
Model overview
interfaces
Consumables
- Tally Dascom DL-830 USB/Ethernet (Part-No. 28.868.0132)
- Tally Dascom DL-830 USB/Ethernet/parallel (Part-No. 28.868.0143)
- Tally Dascom DL-830 USB/Ethernet/serial (Part-No. 28.868.0147)
- Tally Dascom DL-830 with cutter USB/Ethernet (Part-No. 28.868.0644)
- Tally Dascom DL-830 with cutter USB/Ethernet/parallel (Part-No. 28.868.0655)
- Tally Dascom DL-830 with cutter USB/Ethernet/serial (Part-No. 28.868.0659)
- Tally Dascom DL-830 with peeler USB/Ethernet (Ar.,-Nr. 28.868.0388)
- Tally Dascom DL-830 with peeler USB/Ethernet/Par. (Part-No. 28.868.0399)
- Tally Dascom DL-830 with peeler USB/Ethernet/Ser. (Part-No. 28.868.0403)
interfaces
- W-LAN interface (Part-No. 390 310 21)
Consumables
- Ribbon wax (4 inch) (Part-No. 043 970)
- Ribbon wax (2 inch) (Part-No. 043 971)
- Ribbon wax/resin (4 inch) (Part-No. 043 972)
- Ribbon wax/resin (2 inch) (Part-No. 043 973)
- Ribbon resin (4 inch) (Part-No. 043 974)
- Ribbon resin (2 inch) (Part-No. 043 975)
- Youtube: Ribbon exchange
- Youtube: Using DASCOM DL thermal printers with macOS
