Mobile thermal printer DP-80

The MIP480 is a dot matrix printer that has been specially developed for printing A4 documents with carbon copies in mobile environments.

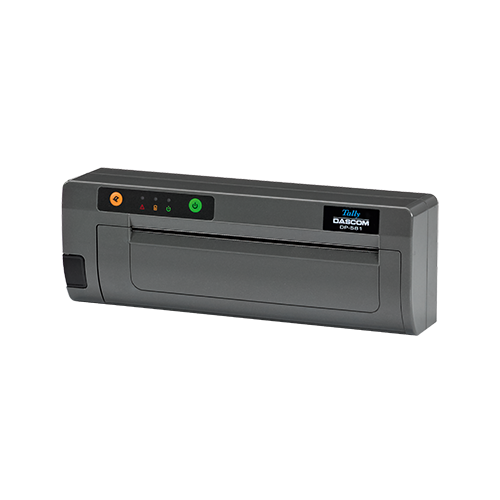

The DP-581 is ideal for workers who need A4 format from the roll.

Full-page mobile printing on the go

Unique, new design and exceptional productivity

Whether in the warehouse, at distribution or in branch operations - rugged design and performance that you can rely on.

Whether receipts or labels - with the Tally Dascom DP-530 SE models you can concentrate entirely on your task and not on the printer.

Rugged and reliable in challenging environments

Robust and flexible to use - with the models of the DP-330 series you can print on paper or labels

Fast printing, minimum size

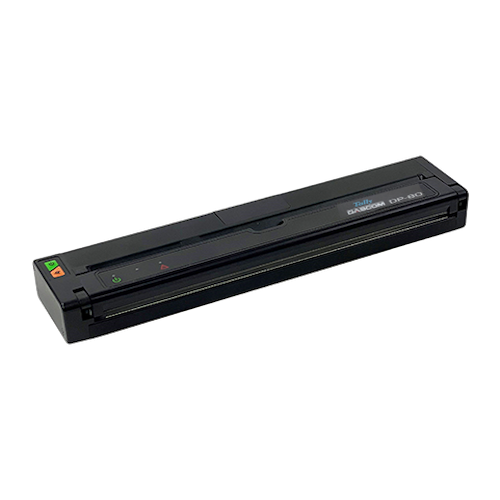

The DP-80 series printers are the latest in reliable, compact, and innovative thermal printing. This small, full-page printer is rated at 11ppm, and is capable of using continuous roll, perforated rolls, or single sheet thermal paper.

This printer features USB, Bluetooth or Wi-Fi connectivity, and is compatible with Windows, Android, and iOS Bluetooth operating systems to provide a wide range of connections. The DP-80 is a true drop-in replacement and fits most mounting systems available for in-vehicle printing. Compatible USB cables, and in-vehicle power adaptors make this printer the perfect addition to any public safety vehicle whether you are outfitting a new fleet or updating your current one.

Highlights at a glance

Dual serrated tear edges for clean crisp tear off of your documents
Large function buttons on top cover
Easy and smooth opening door, with auto loading of paper
2 ips / 11 ppm print speeds
Windows, Android, and iOS Bluetooth compatible
Small foot print design for efficient mounting options

Models

DP-80 standard model with USB interface
DP-80 BT model with Bluetooth interface
DP-80 WiFi model with WiFi interface

Technology	Direct thermal
Print speed	up to 50 mm/sec.
Resolution	203 dpi
Interfaces	1x USB Optional Bluetooth or WiFi
Emulations	ESC/POS, ZPL II, CPCL PostScript, PDF
Print width	210 mm

Model overview

DP-80 standard model (Part-No. 28.867.6190)
DP-80 BT Bluetooth model(Part-No. 28.867.6271)
DP-80 WiFi W-LAN model model (Part-No. 28.867.6299))

Options

USB cable (Part-No. 093 232)
DC converter cable unterminated (Part-No. 093 863)
In-vehicle adapter for cigarette lighter (12 V) (Part-No. 093 864)
In-vehicle adapter for cigarette lighter (12/24 V) (Part-No. 093 446)
AC adapter charge & print (220 V) (Part-No. 093 833)

Consumables

Thermal paper Standard (6 rolls, 55 g/m²) (Part-No. 043 150)
Thermal paper Premium 10 years (6 rolls, 55 g/m²) (Part-No. 043 151)
Thermal paper Premium 25 Jahre (6 rolls, 55 g/m²) (Part-No. 043 152)
Thermal paper Premium 25 Jahre Leporello (250 sheets, 77 g/m², DIN A4) (Part-No. 043 163)
Thermal paper Premium 25 Jahre cut-sheet (250 sheets, 77 g/m², DIN A4) (Part-No. 043 164)

Brochure mobile printer

Data sheet

Option overview

Tally Dascom DP-581

Tally MIP480

Contact

Mobile Printer DP-80
